gov2panel面板XrayR后端对接教程 vmess + ws

准备工作：

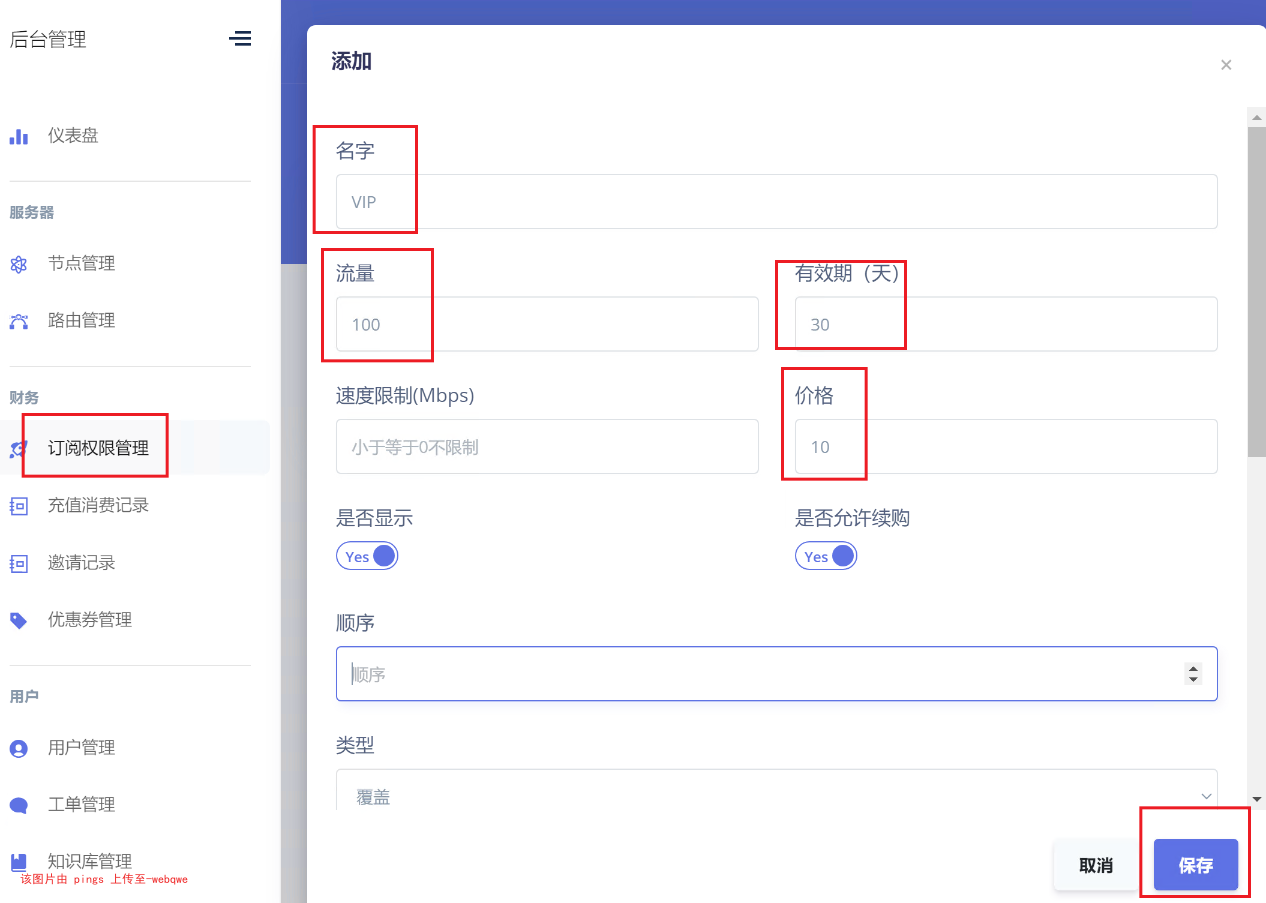

首先需要去 gov2panel 面板 “订阅权限管理” 添加 订阅套餐

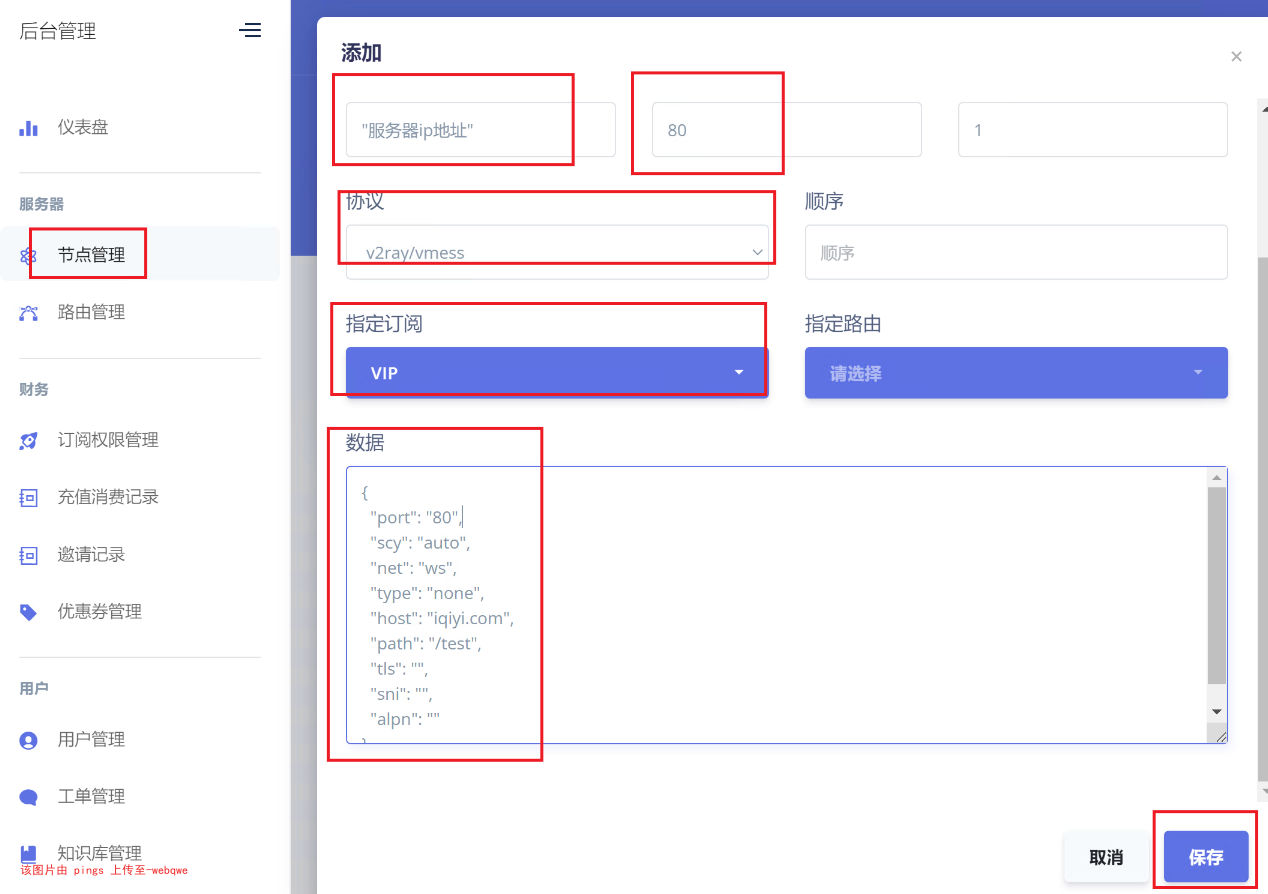

添加节点：

要注意的，通常情况下上面的80端口和数据中的port字段一样；除非用到中转之类的姿势。

上面的端口是用户订阅的端口；

数据中的port字段是后端运行的端口；

数据栏参考  https://github.com/pingProMax/gov2panel  “数据示例”，需要搭建什么协议填对应的就行，自行更改。

对应的协议xrayr后端config也有些差异，需要自行手动更改！这里为 vmess + ws 示例。

更改对接密钥

系统管理-api_key-更改

自行填写

后端对接

XrayR一键安装脚本：

https://xrayr-project.github.io/XrayR-doc/xrayr-xia-zai-he-an-zhuang/install/one-click.html

bash <(curl -Ls https://raw.githubusercontent.com/XrayR-project/XrayR-release/master/install.sh)

安装完成后，更改配置文件

XrayR config

修改

- PanelType: "GoV2Panel"  固定值

ApiHost: "http://test.com"  面板地址

ApiKey: "123456"        对接密钥

NodeID: 1    节点id

EnableREALITY: false   不启用REALITY

完事之后启动xrayr

XrayR start

XrayR log

检查日志，完成。

要提一句的是虽然对接完了但是面板上面的显示的还是离线，这一次使用节点之后会更新状态~

参考：

Log:
  Level: warning # Log level: none, error, warning, info, debug
  AccessPath: # /etc/XrayR/access.Log
  ErrorPath: # /etc/XrayR/error.log
DnsConfigPath: # /etc/XrayR/dns.json # Path to dns config, check https://xtls.github.io/config/dns.html for help
RouteConfigPath: # /etc/XrayR/route.json # Path to route config, check https://xtls.github.io/config/routing.html for help
InboundConfigPath: # /etc/XrayR/custom_inbound.json # Path to custom inbound config, check https://xtls.github.io/config/inbound.html for help
OutboundConfigPath: # /etc/XrayR/custom_outbound.json # Path to custom outbound config, check https://xtls.github.io/config/outbound.html for help
ConnectionConfig:
  Handshake: 4 # Handshake time limit, Second
  ConnIdle: 30 # Connection idle time limit, Second
  UplinkOnly: 2 # Time limit when the connection downstream is closed, Second
  DownlinkOnly: 4 # Time limit when the connection is closed after the uplink is closed, Second
  BufferSize: 64 # The internal cache size of each connection, kB
Nodes:
  - PanelType: "GoV2Panel" # Panel type: SSpanel, NewV2board, PMpanel, Proxypanel, V2RaySocks, GoV2Panel
    ApiConfig:
      ApiHost: "http://test.com"
      ApiKey: "123456"
      NodeID: 1
      NodeType: V2ray # Node type: V2ray, Shadowsocks, Trojan, Shadowsocks-Plugin
      Timeout: 30 # Timeout for the api request
      EnableVless: false # Enable Vless for V2ray Type
      VlessFlow: "xtls-rprx-vision" # Only support vless
      SpeedLimit: 0 # Mbps, Local settings will replace remote settings, 0 means disable
      DeviceLimit: 0 # Local settings will replace remote settings, 0 means disable
      RuleListPath: # /etc/XrayR/rulelist Path to local rulelist file
      DisableCustomConfig: false # disable custom config for sspanel
    ControllerConfig:
      ListenIP: 0.0.0.0 # IP address you want to listen
      SendIP: 0.0.0.0 # IP address you want to send pacakage
      UpdatePeriodic: 60 # Time to update the nodeinfo, how many sec.
      EnableDNS: false # Use custom DNS config, Please ensure that you set the dns.json well
      DNSType: AsIs # AsIs, UseIP, UseIPv4, UseIPv6, DNS strategy
      EnableProxyProtocol: false # Only works for WebSocket and TCP
      AutoSpeedLimitConfig:
        Limit: 0 # Warned speed. Set to 0 to disable AutoSpeedLimit (mbps)
        WarnTimes: 0 # After (WarnTimes) consecutive warnings, the user will be limited. Set to 0 to punish overspeed user immediately.
        LimitSpeed: 0 # The speedlimit of a limited user (unit: mbps)
        LimitDuration: 0 # How many minutes will the limiting last (unit: minute)
      GlobalDeviceLimitConfig:
        Enable: false # Enable the global device limit of a user
        RedisAddr: 127.0.0.1:6379 # The redis server address
        RedisPassword: YOUR PASSWORD # Redis password
        RedisDB: 0 # Redis DB
        Timeout: 5 # Timeout for redis request
        Expiry: 60 # Expiry time (second)
      EnableFallback: false # Only support for Trojan and Vless
      FallBackConfigs:  # Support multiple fallbacks
        - SNI: # TLS SNI(Server Name Indication), Empty for any
          Alpn: # Alpn, Empty for any
          Path: # HTTP PATH, Empty for any
          Dest: 80 # Required, Destination of fallback, check https://xtls.github.io/config/features/fallback.html for details.
          ProxyProtocolVer: 0 # Send PROXY protocol version, 0 for disable
      DisableLocalREALITYConfig: false  # disable local reality config
      EnableREALITY: false # Enable REALITY
      REALITYConfigs:
        Show: true # Show REALITY debug
        Dest: www.smzdm.com:443 # Required, Same as fallback
        ProxyProtocolVer: 0 # Send PROXY protocol version, 0 for disable
        ServerNames: # Required, list of available serverNames for the client, * wildcard is not supported at the moment.
          - www.smzdm.com
        PrivateKey: YOUR_PRIVATE_KEY # Required, execute './xray x25519' to generate.
        MinClientVer: # Optional, minimum version of Xray client, format is x.y.z.
        MaxClientVer: # Optional, maximum version of Xray client, format is x.y.z.
        MaxTimeDiff: 0 # Optional, maximum allowed time difference, unit is in milliseconds.
        ShortIds: # Required, list of available shortIds for the client, can be used to differentiate between different clients.
          - ""
          - 0123456789abcdef
      CertConfig:
        CertMode: dns # Option about how to get certificate: none, file, http, tls, dns. Choose "none" will forcedly disable the tls config.
        CertDomain: "node1.test.com" # Domain to cert
        CertFile: /etc/XrayR/cert/node1.test.com.cert # Provided if the CertMode is file
        KeyFile: /etc/XrayR/cert/node1.test.com.key
        Provider: alidns # DNS cert provider, Get the full support list here: https://go-acme.github.io/lego/dns/
        Email: [email protected]
        DNSEnv: # DNS ENV option used by DNS provider
          ALICLOUD_ACCESS_KEY: aaa
          ALICLOUD_SECRET_KEY: bbb
